Use Case: Regular Bathroom Sample project

  • 02 Oct, 2025
  • MeasureSquare 8, Use Case Library

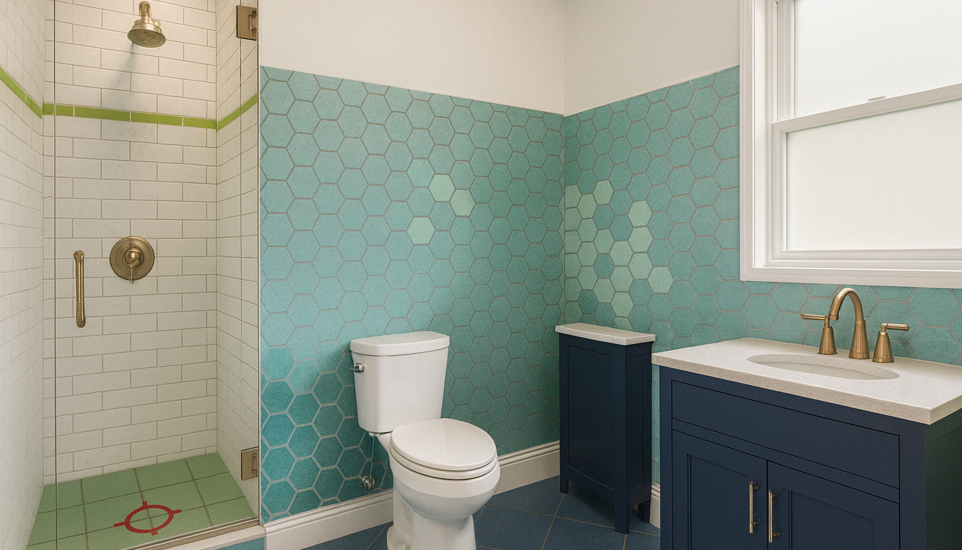

Before After Before image
After image

Project Details

💻
Platform
MeasureSquare 8
🏨
Industry
Residential
📐
Project Type
Master Bathroom

⚙️Tools Used

  • Rectangular Draw
  • Split Wall Segment
  • Draw Wall
  • Door
  • Window
  • Tile Texture (Cabinet Face & Picture)
  • Elevation (Shower Curb, Bathtub Tub Deck, Toilet, Vanity, Picture & Mirror Frames)
  • Elevation as Recess (Bathtub/Sink/Toilet Basins, Picture & Mirror Inserts)
  • Set Arc

🛒Materials Captured

  • Mud Bed
  • Waterproofing/Crack-Iso Membrane
  • Wall Tile (Hex & Subway)
  • Floor Tile (laid on 45) & Mesh-Mounted Mosaic on Shower Floor
  • Marble Threshold at top of Shower Curb
  • Flooring Transition at doorway
  • Edge Trim (Outcorners)
  • Caulking
  • Floor Drain

Project Overview:

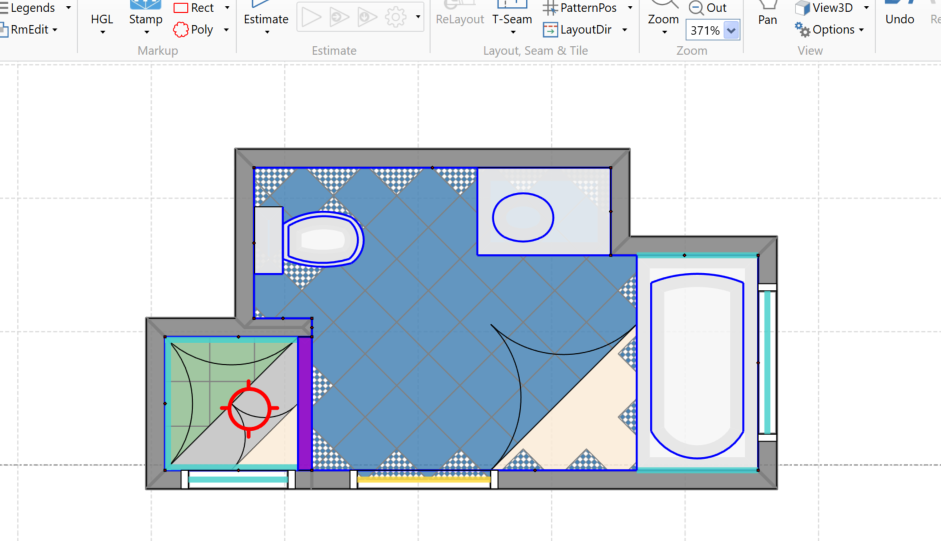

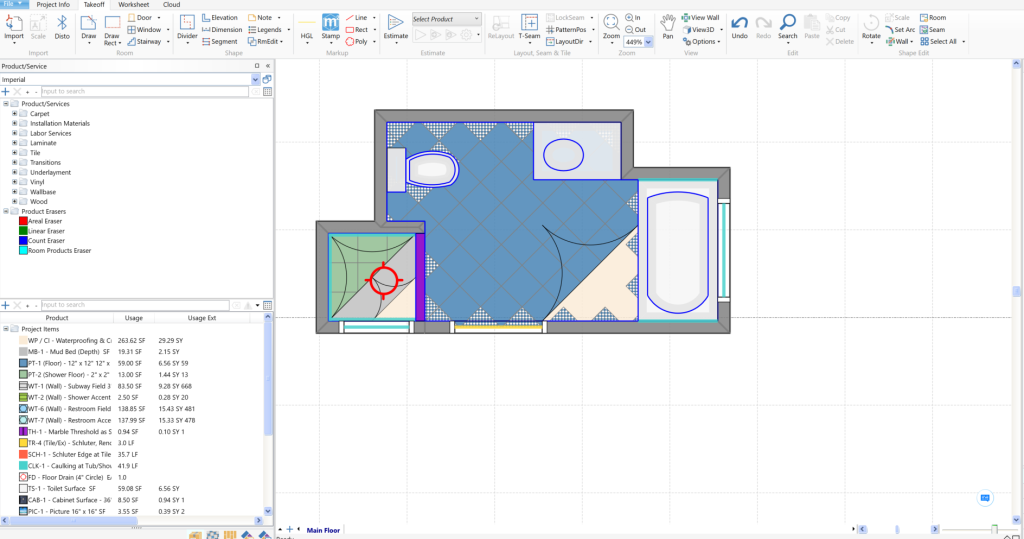

Takeoff overview in MeasureSquare 8

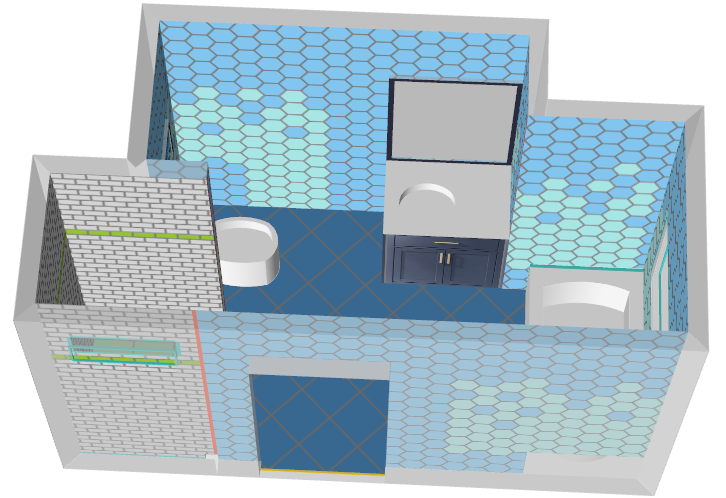

3D view generated by MeasureSquare 8

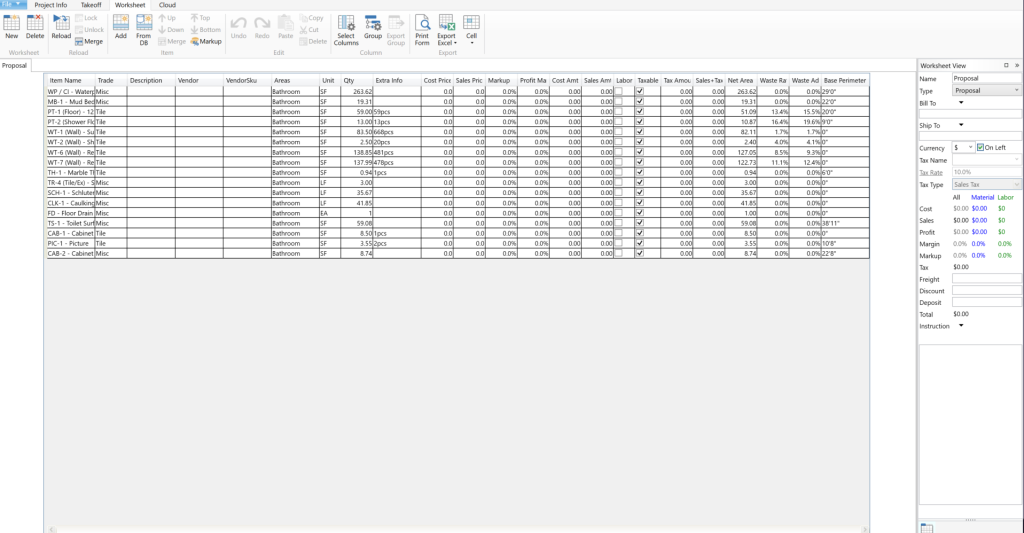

Project proposal

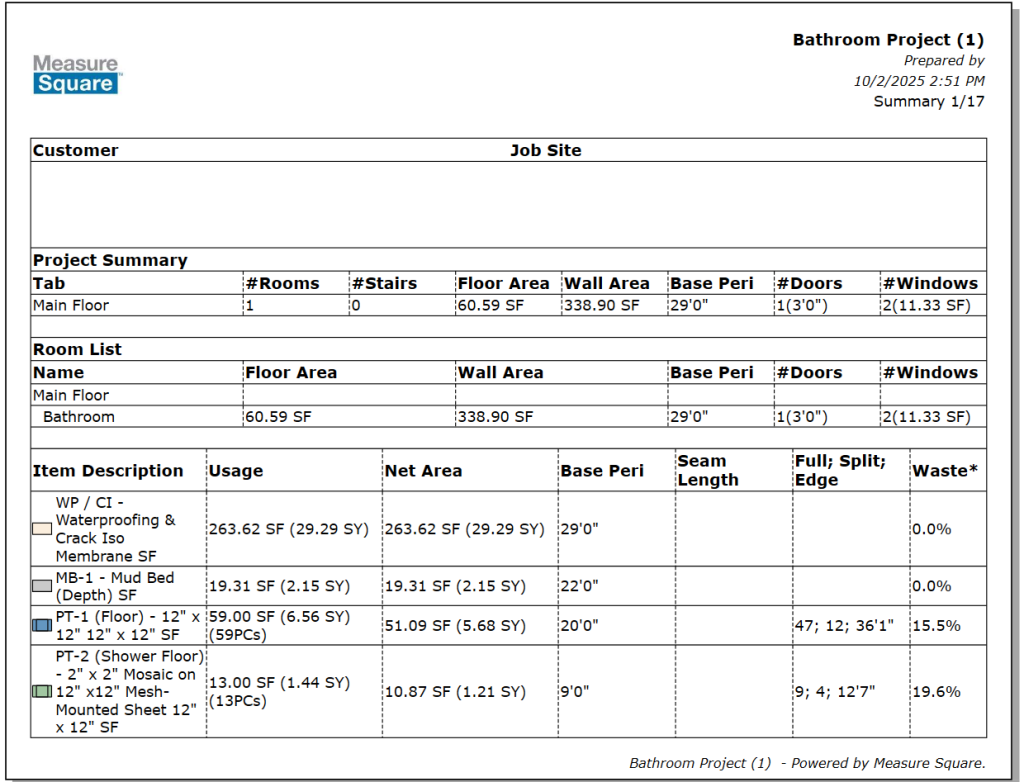

Project report overview 1

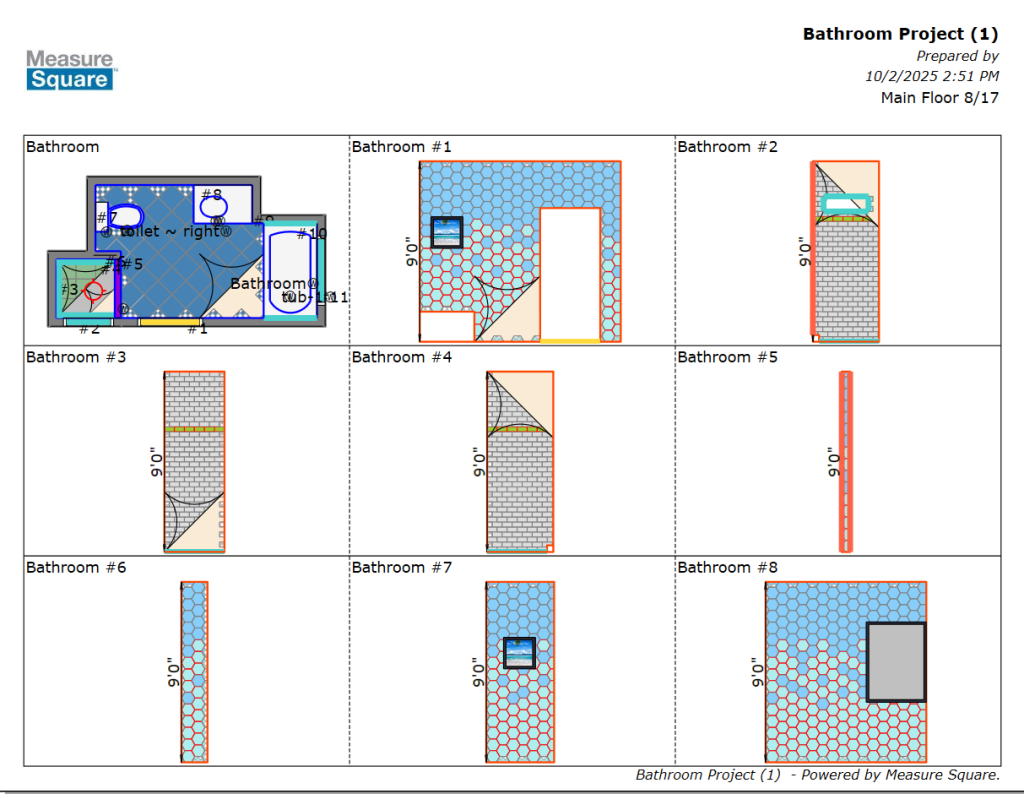

Project report overview 2
